Bolt-on Pivoting Plate for HD or LD Steel Shore

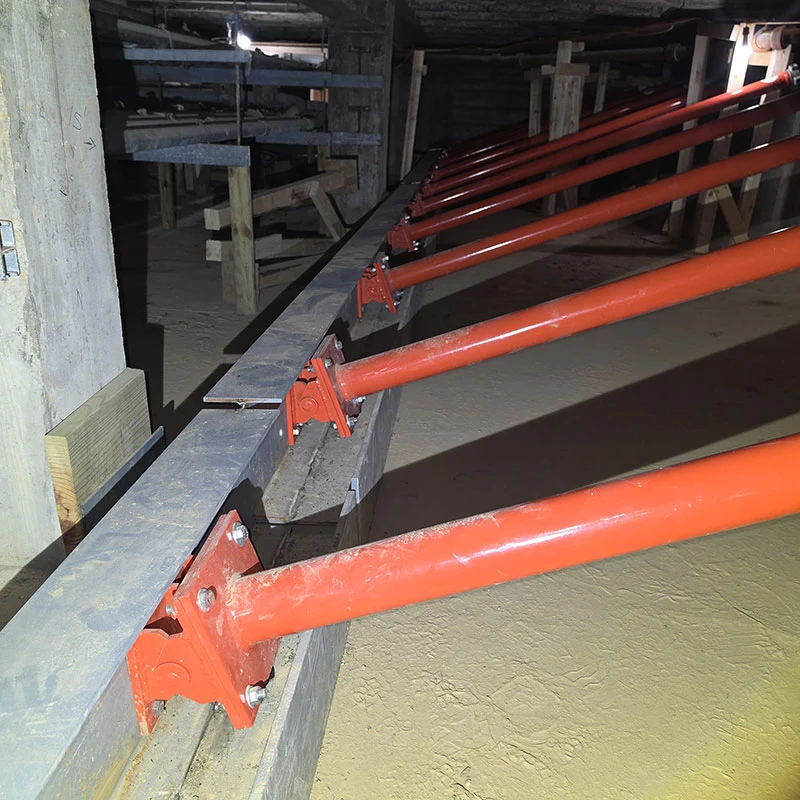

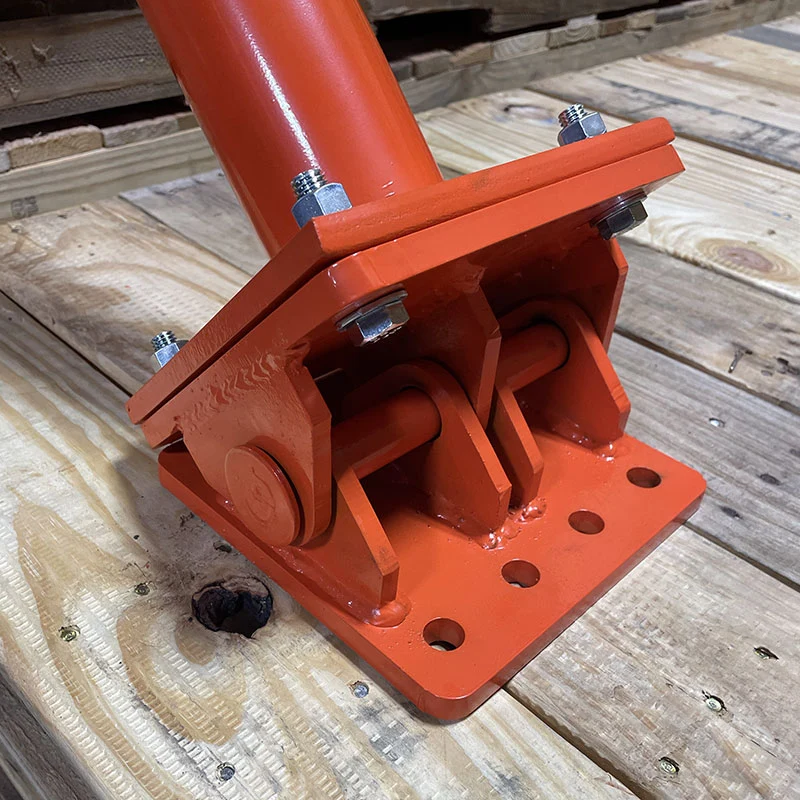

The Ellis Bolt-On Pivoting Flat Plate can be bolted to Ellis Steel Shores to add a 45 degree pivot to the base.Ā Its modular design enables Heavy Duty Steel Shores to be used in either the standard vertical configuration or when bolted on used at an angle.Ā Ā
Specifications
Add a pivoting flat plate to the base of any Light or Heavy Duty Steel Shore.Ā Constructed of ASTM A36 steel plate and a 1" diameter hinge pin provides ultimate safe load capacity.Ā Ā
*Contact Ellis customer support for load rating information
Specifications

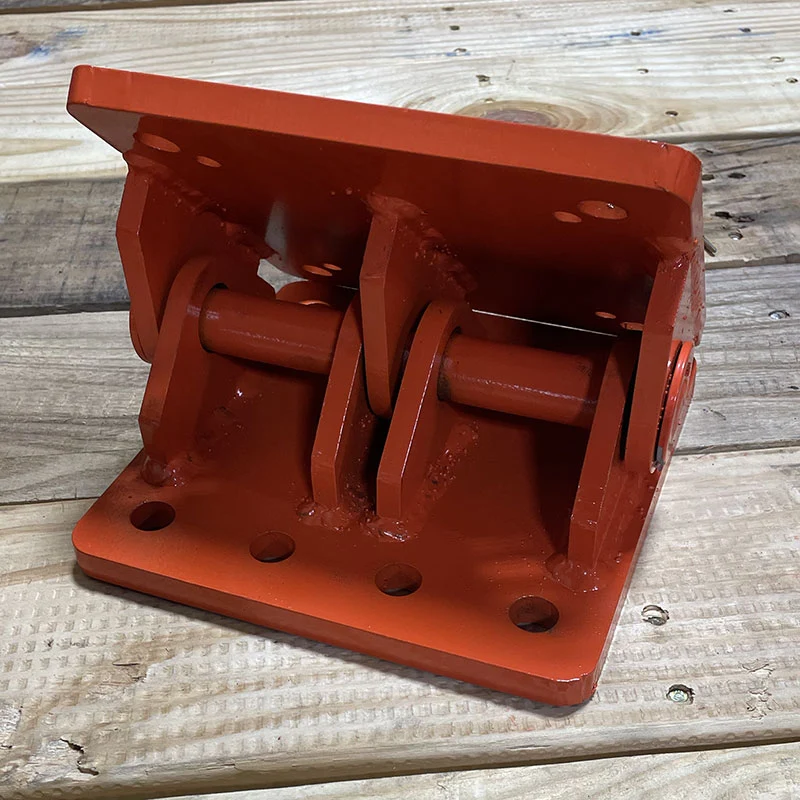

Top plate - ASTM A36 , 1/2"x8"x8" Steel Plate, 4- 1/2" holes for mounting to Light Duty Steel Shores and 4- 5/8" Holes for mounting to Heavy Duty Steel Shores
Hinge Brackets- ASTM A36 , 3/8" thick, 4 on bottom, 3 on top
Hinge Pin - 1"Ā diameter, 8.125" long, ASTM A36 hot rolled
Base PlateĀ - ASTM A36 , 1/2"x8" x8", 8 - 5/8" Holes
Shop Drawings:
| Item Number | Shop Drawing (.PDF) |
| BOP-FP88 | Coming Soon |
