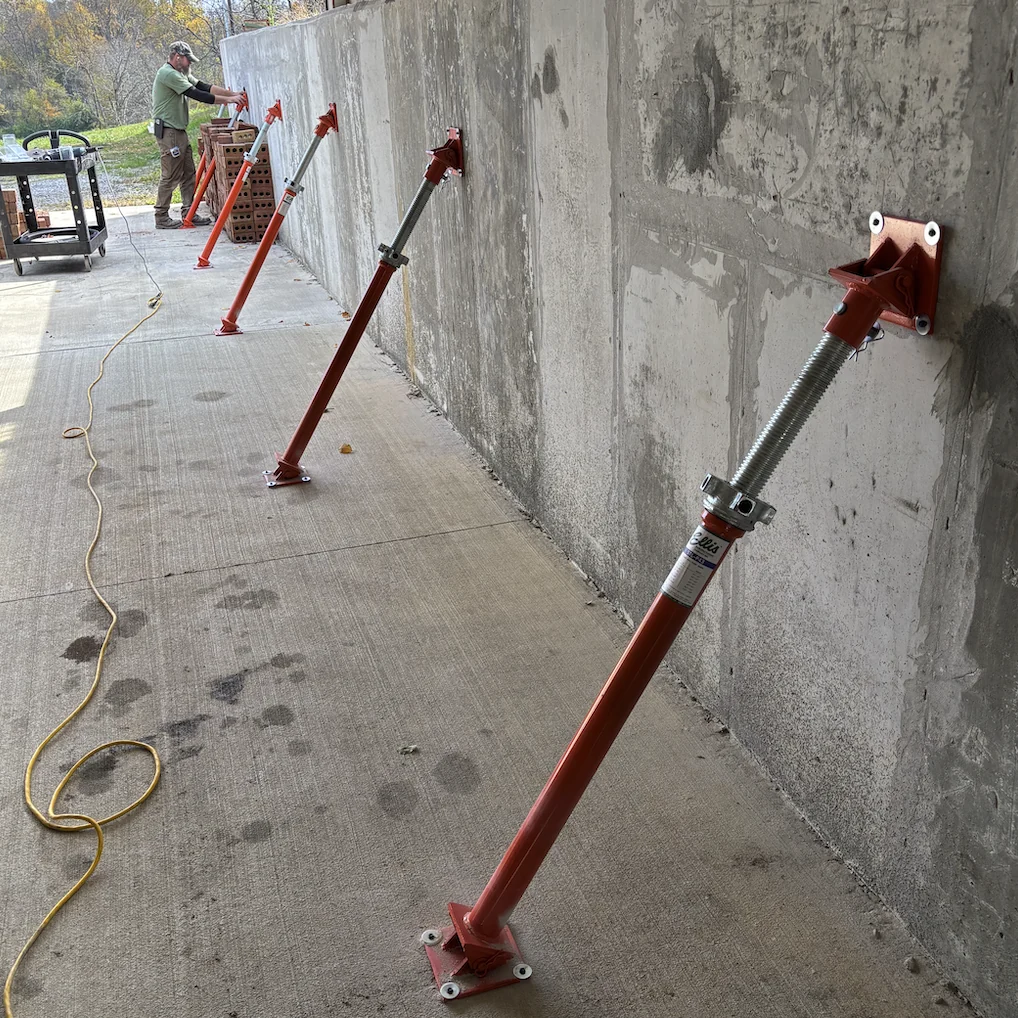

The Ellis Light Duty Pivot Shore is a patented adjustable structural support system with flat plate pivoting ends designed to support a load at an angle. The Pivot Shore has the patented Ellis Lifting Nut assembly that dramatically reduces friction while adjusting the length of the shore under load. Each end of the Ellis Pivot Shore has a pivoting flat plate that pivots 45 degrees in each direction. These lifting shores can be used in temporary or permanent installations.

Specifications

All Ellis Light Duty Steel Lifting Shores now come with the 4 lug lifting nut. Used the 3/4" Diameter Steel Adjustment Rod to lift loads.

The patented Ellis Thrust Bearings on the Light Duty Lifting Shores enable these shores to lift up to 10x the amount of load compared to the standard Light Duty Steel Shores (w/o bearings). Adjustable structural support column for temporary or permanent support with a patented nut housing tiny thrust bearings to allow for easier adjustment under load and jacking weight with significantly less force. Add any length 3/4" Diameter Steel Adjustment Rod for extra leverage.

Unlike the Standard Steel Shore, these with Roller Bearings are built as one complete unit to aid in uplift resistance and do not come apart. Furthermore, we've added a "set screw" in the side of the nut, and when tightened down locks the adjustment handle in place for permanent or long term shoring applications.

The top 6" x 6" top plate is attached with a clevis pin and interchangeable with different shapes and sizes. Click here to see a few of the different tops to choose from: STEEL SHORE TOPS.

*Contact Ellis customer support for load rating information

Demonstration Video

Specifications

Ellis Patented Lifting Nut Assembly - Forged for durability, galvanized. Houses tiny thrust bearings to allow for much easier adjustment under load. Lockable with safety lock set screw (included) for permanent use.

Top plate - ASTM A36 3/8x6x6" Steel Plate, 4- 3/8" holes (Attaches with clevis pin and Interchangeable with custom U Heads.) Pivots 45 degrees in two directions. See below for more adjustable top plate options.

Base Plate - ASTM A36 3/8"x6" x6", 4- 3/8" Holes , pivots 45 degrees in two directions. Custom sizes available

Acme Screw - 1-7/8" Dia. (Lengths vary).

Pipe - ASTM A500 2" Schedule 40 (Lengths vary).

Shop Drawings:

Item Number	Shop Drawing (.PDF)
STL-P27	STL-P27 Shop Drawing
STL-P43	STL-P43 Shop Drawing

Interchangeable Top Plate Options:

Flat Plate - Standard with any Light Duty Steel Shore
Lumber U-Head - Compatible with Light Duty Steel Shores and is intended to be used to secure to a horizontal 2x4, 2x6, 4x4, 4x8, 6x6 etc. lumber beam.
Custom Top Plate shapes and sizes specific to Light Duty Steel Shores upon request (800) 654-8311 or store@ellismanufacturing.com.

*Steel Shores should be attached to a flat solid foundation with fasteners that can support the desired load amount. Steel Shores should not be subject to any lateral force. We recommend tightening set screw in the side of the nut with 6mm allen wrench prior to loading. Do not extend screw past advertised adjustment range. Do not exceed max safe load capacity. Before construction begins it is recommended that you consult with a certified engineer for approval of our products within your application.
